Architectural Linear GKOARLG1
SERIES GKOARLG1

Architectural Linear

A modular Architectural Linear lighting solution with a wide range of connection and mounting options.
SKU WATTAGE SIZE OUTPUT CCT CRI VOLTAGE UL DLC DLC ID
GKOARLG12F20W27VDDKWAD 20W 2′ 2,600 Lumens 5000K, 4000K, 3500K, 3000K, 2700K 80 120-277V Damp Locations Premium COMING SOON
GKOARLG14F40W27VDDKWAD 40W 4′ 5,200 Lumens 5000K, 4000K, 3500K, 3000K, 2700K 80 120-277V Damp Locations Premium COMING SOON
GKOARLG18F80W27VDDKWAD 80W 8′ 10,400 Lumens 5000K, 4000K, 3500K, 3000K, 2700K 80 120-277V Damp Locations Premium COMING SOON

*Indicated lumen value is for 3000K CCT.

INSTALL GUIDE
COMING SOON
IES FILES
COMING SOON
Architectural GKOARLG1 Connected

Power/CCT/Light Output Selectable

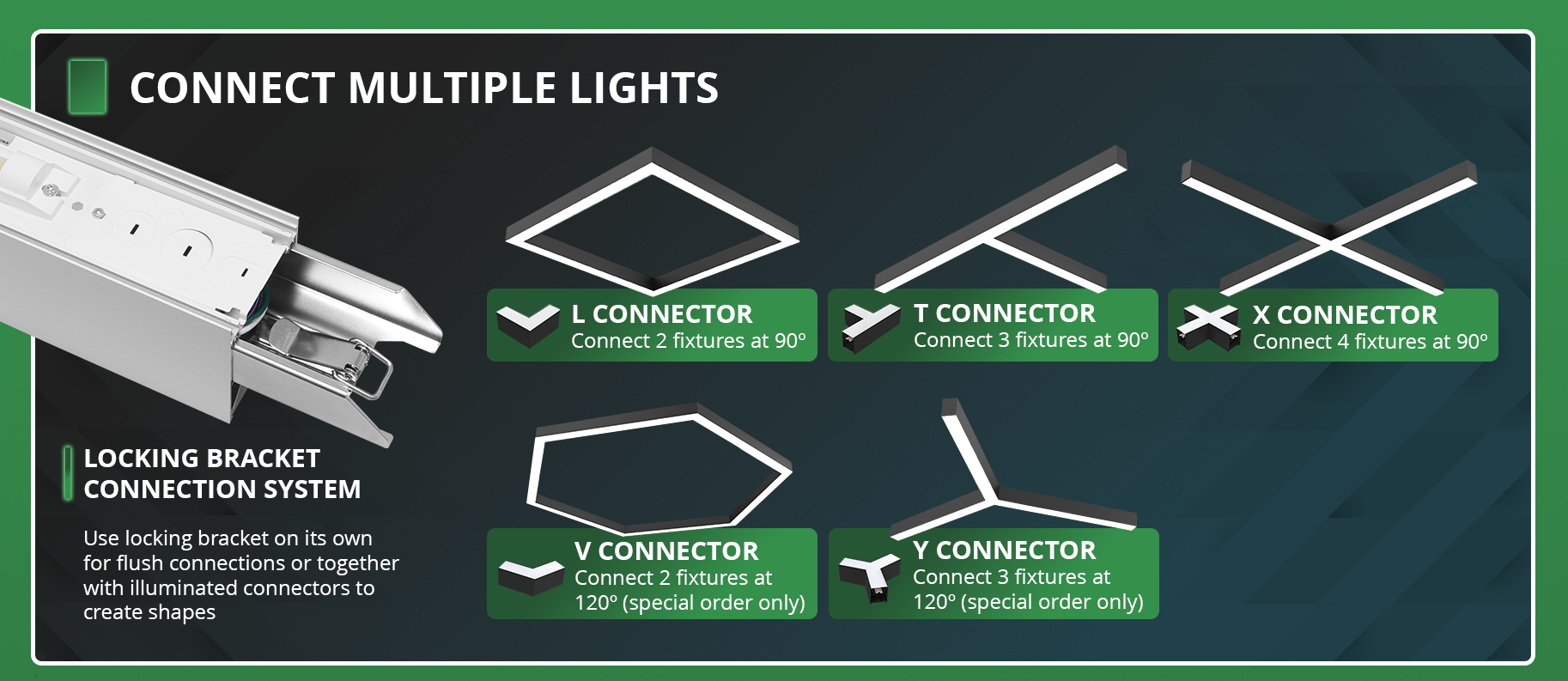

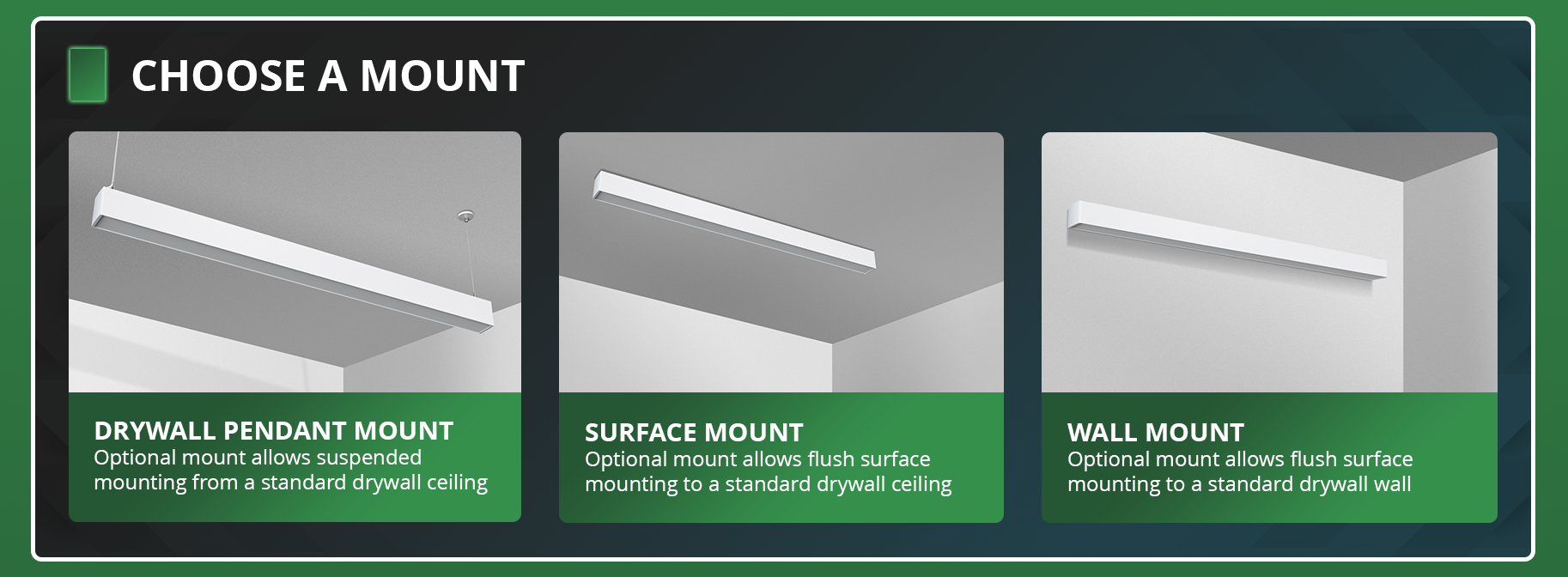

Available in standard 2′, 4′ and 8′ sizes, the Series GKOARLG1 Architectural Linear Light is a complete Power & CCT Selectable modular interior linear lighting system for commercial and institutional environments. An optional LED uplighting module is available for bidirectional lighting, and every model features Selectable Light Distribution for adjustment of the light output. A wide range of illuminated connectors and suspension, surface, and recessed mounting options allow for an endless variety of lighting designs.



Applications

INDOOR COMMERCIAL, INDUSTIAL, INSTITUTIONAL, AND RESIDENTIAL SPACES, SUCH AS RETAIL, OFFICES, HOTELS, AND UNIVERSITIES

Customer-Focused Features

OPTIMAL MATERIALS

Aluminum Extrusion Housing and Frosted Polycarbonate Diffuser

DIMMABLE CONTROLS

0-10V Dimmable Control Allows for Customized Lighting Outputs

OPERATING TEMPERATURES

Rated for Temperatures from -4˚F to 104˚F (-20˚C to 40˚C)

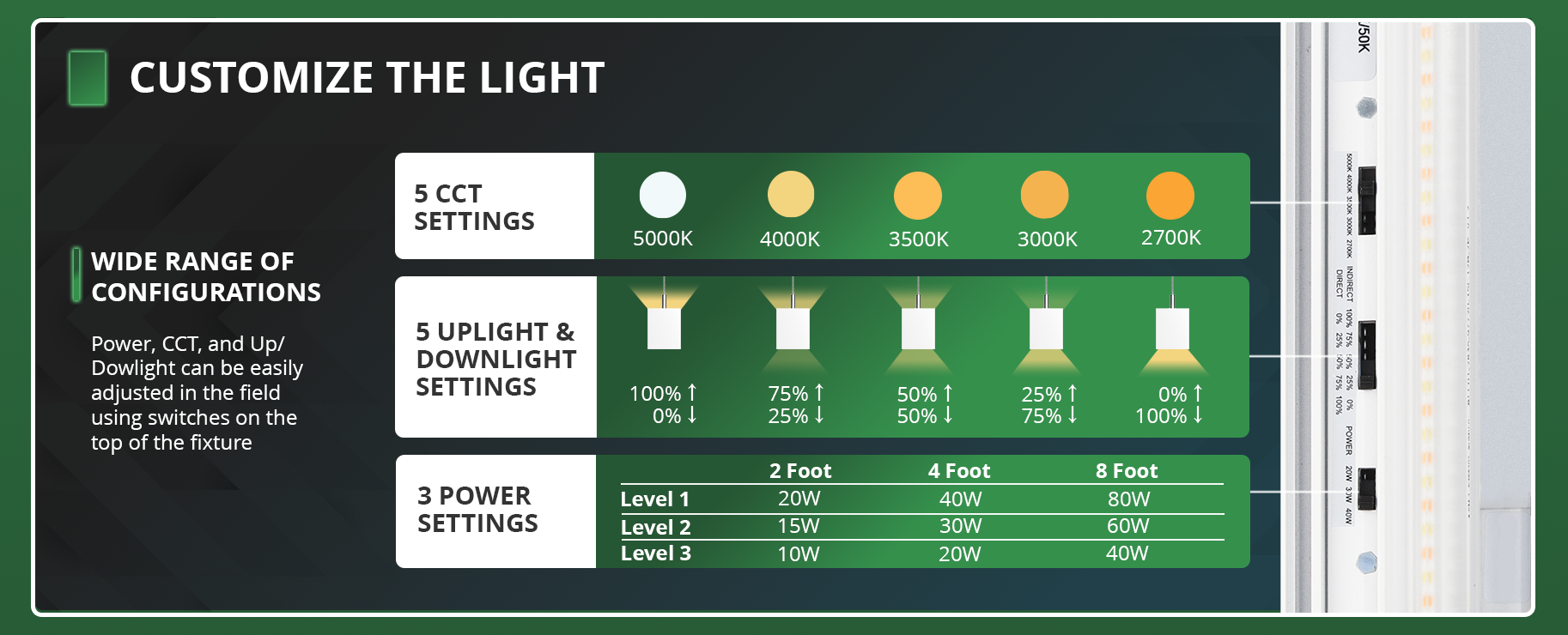

POWER/CCT/LIGHT OUTPUT SELECTABLE

Power/CCT/Light Output Adjustment Controls Standard

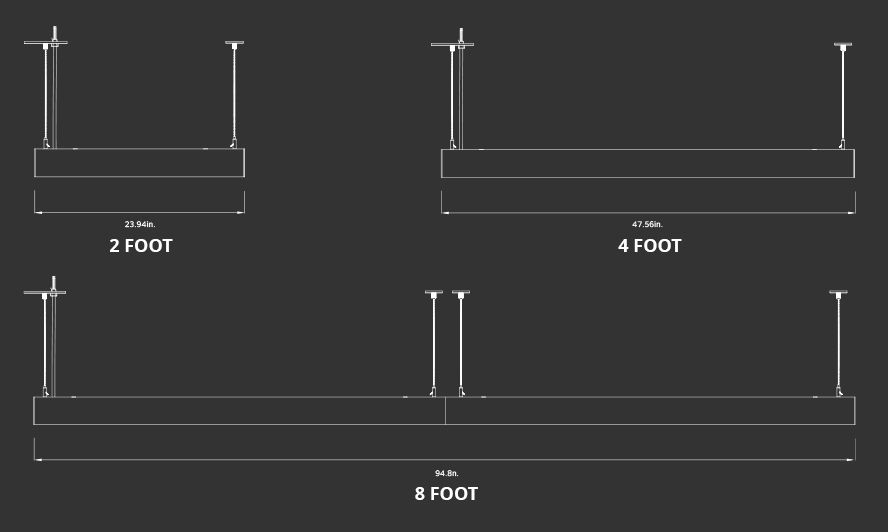

GKOARLG1 Dimensions

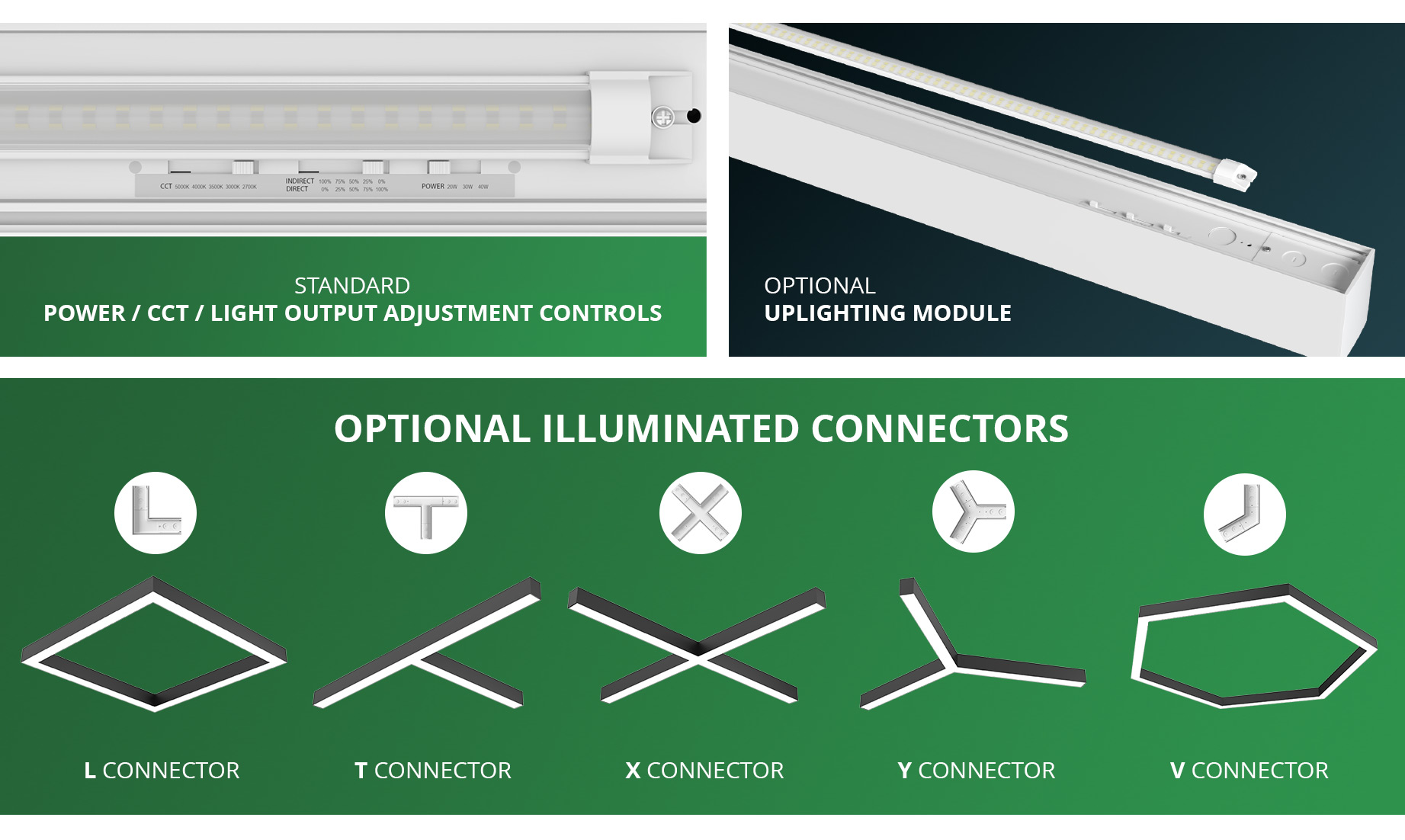

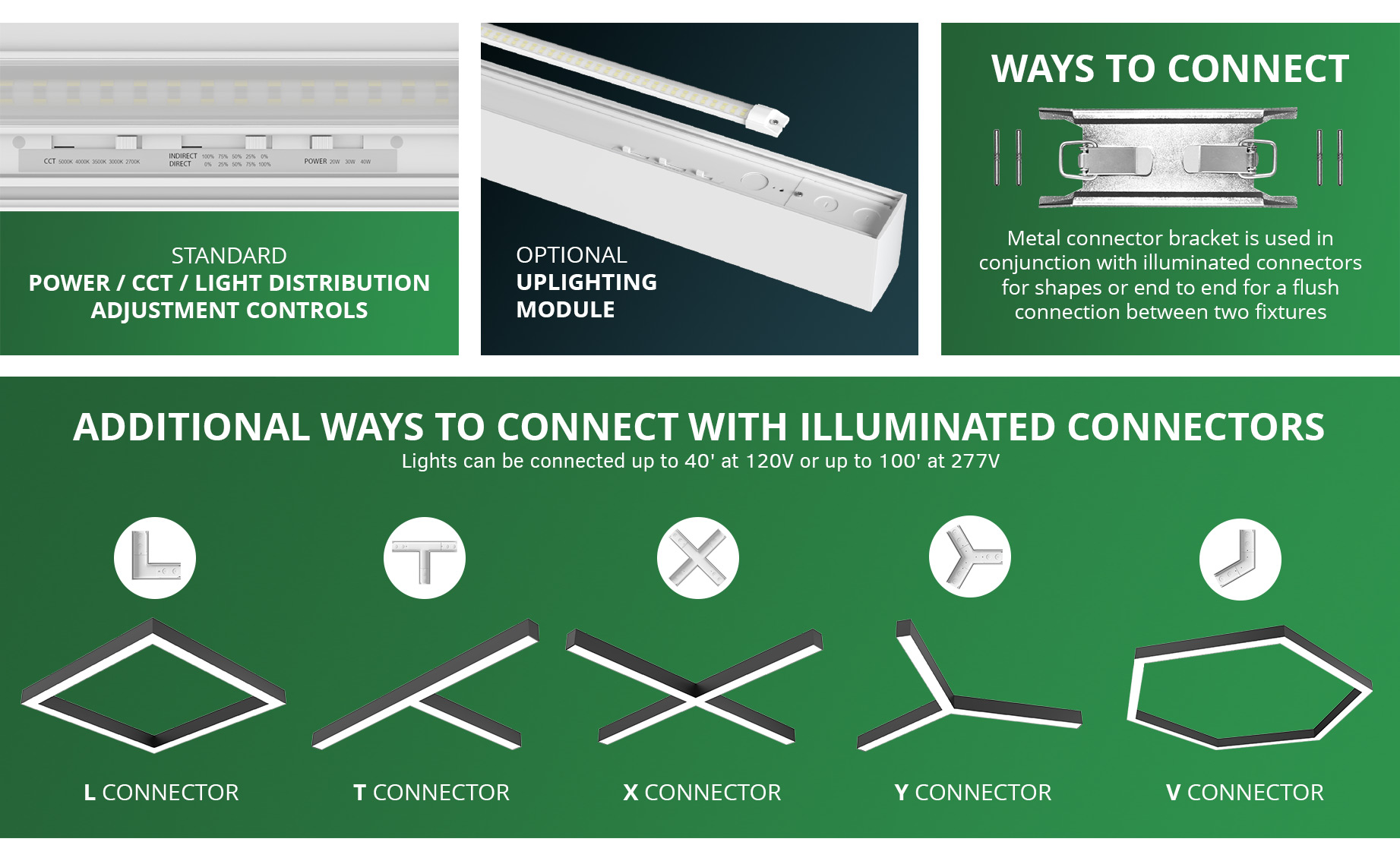

Architectural Linear GKOARLG1 Features
