| SKU | SIZE | WATTAGE | OUTPUT | CCT | CRI | VOLTAGE | UL | DLC | DLC ID | GKOPLG214B40W27VPC | 1x4 | 25W | 3,125 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-49HU1A |
| GKOPLG214B40W27VPC | 1x4 | 30W | 3,750 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-49HU1A |
| GKOPLG214B40W27VPC | 1x4 | 40W | 5,000 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-49HU1A |
| GKOPLG222B30W27VPC | 2x2 | 20W | 2,500 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-JYXM9W |
| GKOPLG222B30W27VPC | 2x2 | 25W | 3,125 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-JYXM9W |
| GKOPLG222B30W27VPC | 2x2 | 30W | 3,750 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-JYXM9W |
| GKOPLG224B40W27VPC | 2x4 | 25W | 3,125 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-4Y5GVC |
| GKOPLG224B40W27VPC | 2x4 | 30W | 3,750 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-4Y5GVC |
| GKOPLG224B40W27VPC | 2x4 | 40W | 5,000 Lumens | 5000K / 4000K / 3500K | 80 | 120-277V | Damp Locations | Premium | S-4Y5GVC |
Visit the Design Lights Consortium website for more information on product DLC qualification.
COST-EFFECTIVE & ENERGY-EFFICIENT
Series GKOPLG2 LED Panels are the cost-effective energy-efficient replacement for traditional fluorescent fixtures in settings with recessed or suspended grid ceilings, such as offices or retail environments. Power & CCT Adjustment Controls are standard on every model, allowing the lighting professional to adjust the lumen output and CCT of the fixture during installation.

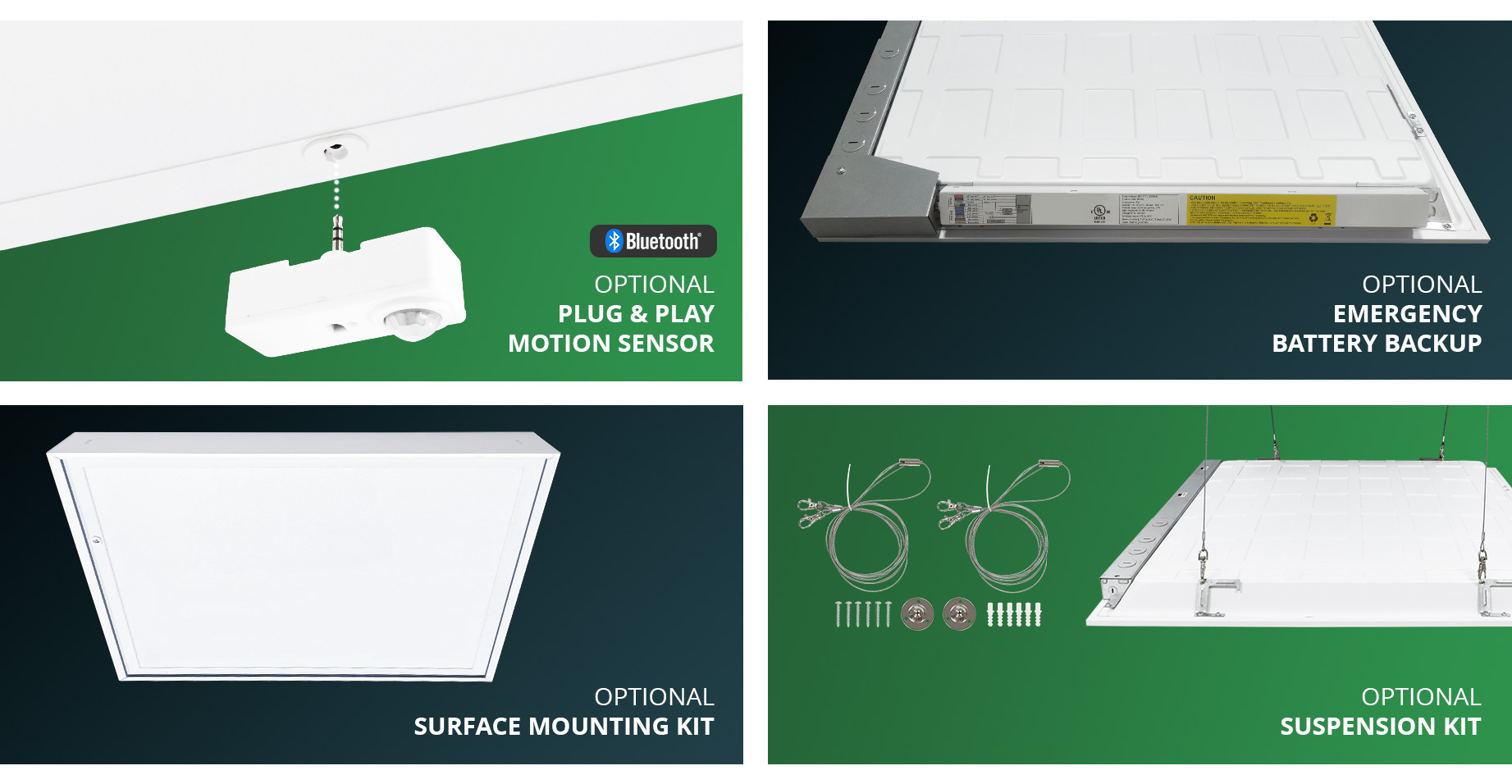

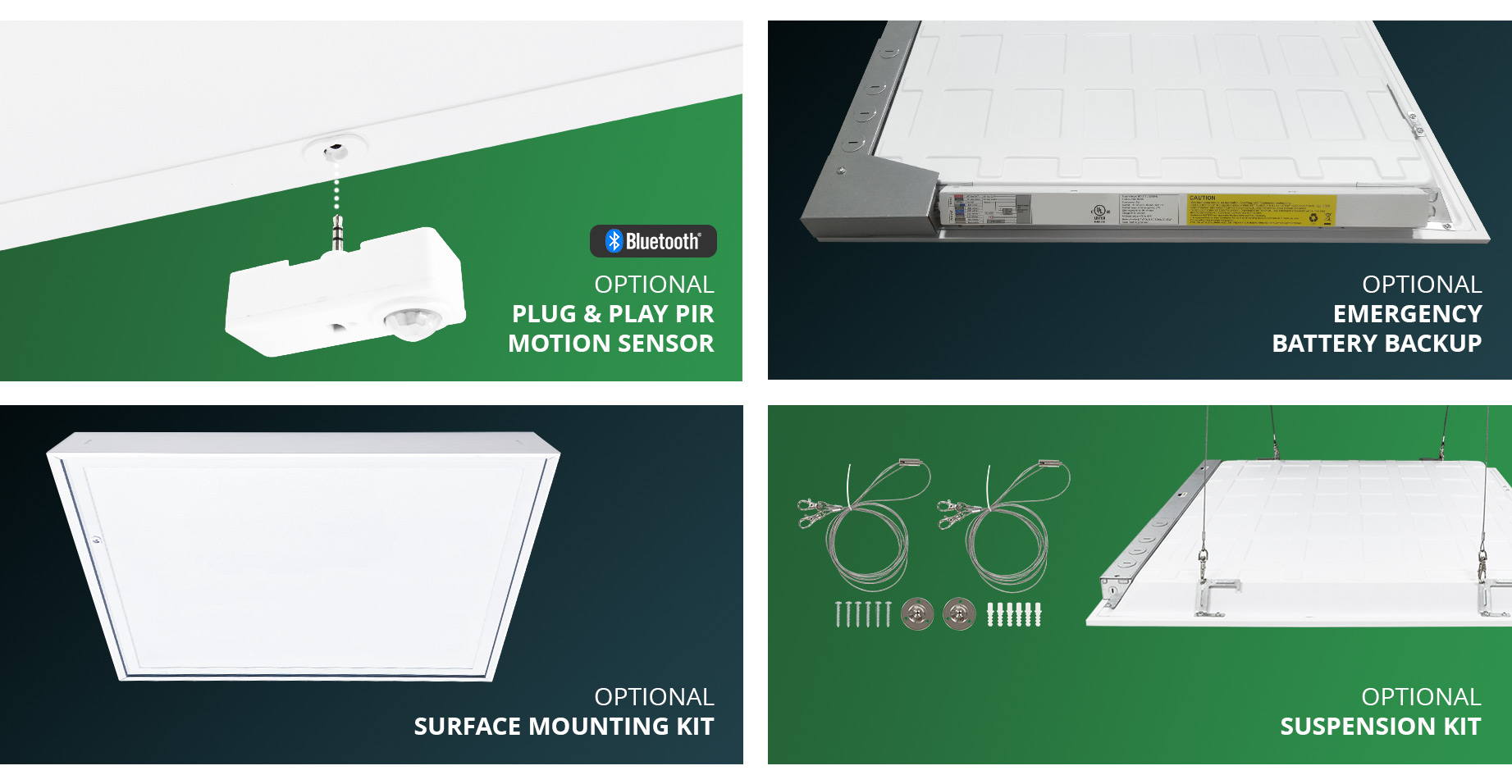

Available options include Bluetooth Networked Controls and multi-level motion sensors featuring an easy-to-install locking Plug & Play design that minimizes labor time and cost.
Applications
OFFICE, RETAIL, AND INSTITUTIONAL SETTINGS WITH SUSPENDED GRID OR RECESSED CEILINGS
Customer-Focused Features
|
OPTIMAL MATERIALS Steel Sheet and Extruded Aluminum Housing with PS Diffuser
|
DIMMABLE CONTROLS 0-10V Dimmable Control Allows for Customized Lighting Outputs
|
|
OPERATING TEMPERATURES Tunable: -4˚F to 122˚F (-20˚C to 50˚C)
|
MEETS ANSI/IEEE C62.41.2 1kV Surge Protection Standard
|
