| SKU | TYPE | WATTAGE | SIZE | LENS | OUTPUT | CCT | CRI | VOLTAGE | REPLACES | UL | DLC | DLC ID |
| GKOMLHG690W27V50KCD | Fixed | 90W | 1' x 1' | Clear | 12,700 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (3) F54T5, (4) F32T8,or 250W HID | Damp Locations | Standard | S-I2KWBE |
| GKOMLHG6130W27V50KCD | Fixed | 130W | 1' x 1' | Clear | 18,600 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (4) F54T5, (6) F32T8, or 400W HID | Damp Locations | Standard | S-KQ5037 |
| GKOMLHG6130W27V50KPD | Fixed | 130W | 1' x 1' | Prismatic | 17,600 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (4) F54T5, (6) F32T8, or 400W HID | Damp Locations | Premium | Coming Soon |
| GKOMLHG6175W27V50KCD | Fixed | 175W | 1' x 2' | Clear | 25,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (6) F54T5 or (8) F32T8 | Damp Locations | Standard | S-T3HZ6N |
| GKOMLHG6175W27V50KPD | Fixed | 175W | 1' x 2' | Prismatic | 23,500 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (6) F54T5 or (8) F32T8 | Damp Locations | Premium | Coming Soon |
| GKOMLHG6210W27V50KCD | Fixed | 210W | 1' x 2' | Clear | 30,600 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (8) F54T5 or (10) F32T8 | Damp Locations | Standard | S-80BP3M |
| GKOMLHG6210W27VDDKCD | Tunable | 210W | 1' x 2' | Clear | 30,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (8) F54T5 or (10) F32T8 | Damp Locations | Standard | S-87HEJN |
| GKOMLHG6210W27VDDKPD | Tunable | 210W | 1' x 2' | Prismatic | 30,500 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (8) F54T5 or (10) F32T8 | Damp Locations | Premium | Coming Soon |
| GKOMLHG6270W27V50KCD | Fixed | 270W | 1' x 3' | Clear | 37,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (12) F54T5 or (14) F32T8 | Damp Locations | Standard | S-43FBWM |
| GKOMLHG6300W27V50KCD | Fixed | 300W | 1' x 3' | Clear | 41,500 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (16) F54T5 or (18) F32T8 | Damp Locations | Standard | S-QNA07B |
| GKOMLHG6300W27V50KPD | Fixed | 300W | 1' x 3' | Prismatic | 40,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | (16) F54T5 or (18) F32T8 | Damp Locations | Premium | Coming Soon |
Visit the Design Lights Consortium website for more information on product DLC qualification.
Small Footprint, High Output

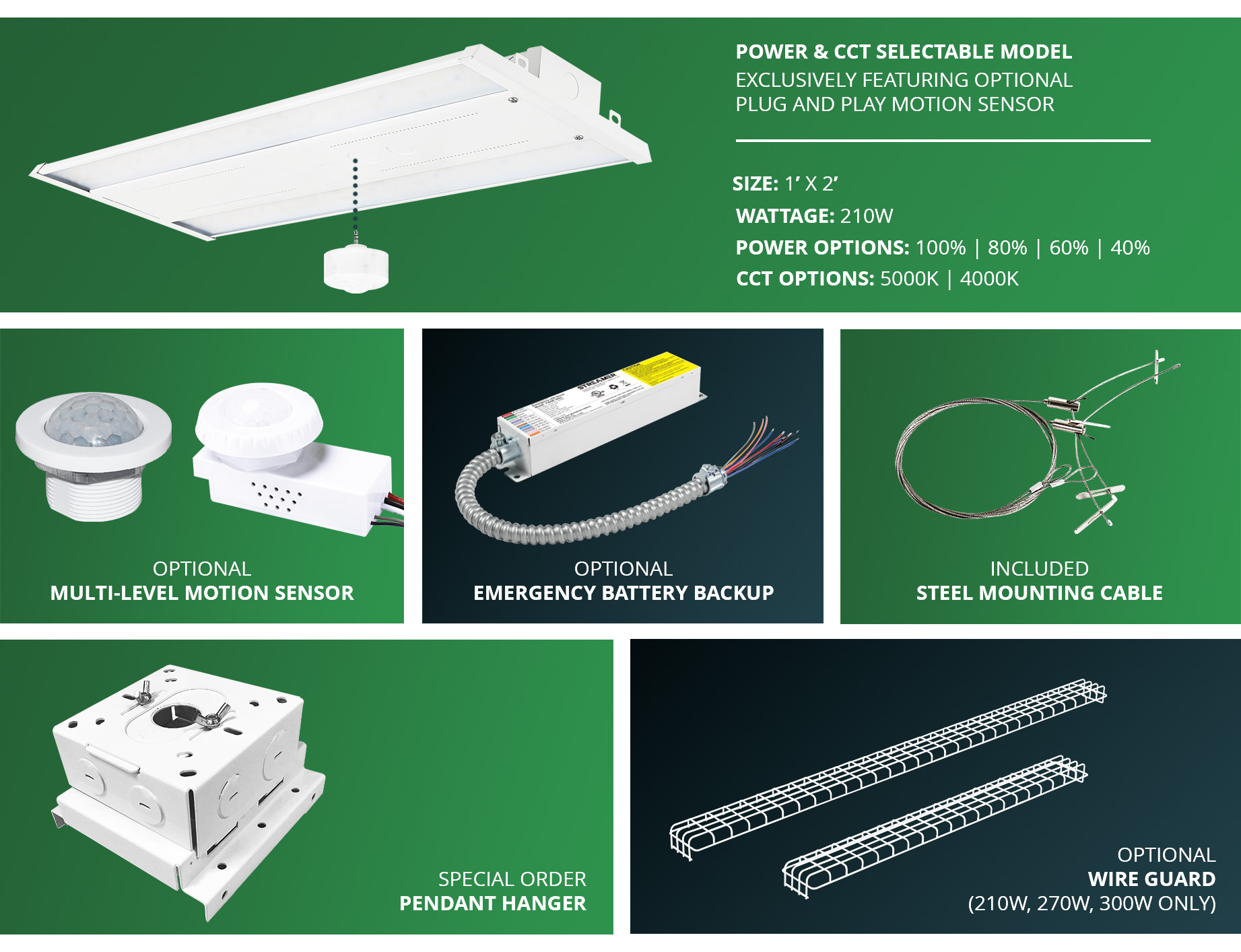

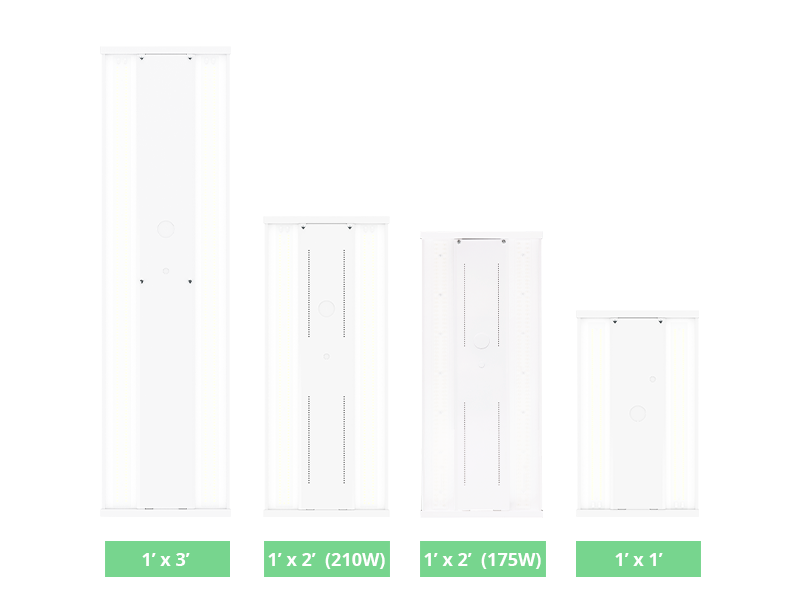

The series GKOMLHG6 LED Linear High Bay is available in Fixed Power & CCT models in 1×1, 1×2, and 1×3, and a Power & CCT Tunable model in 1×2. It is ideal for delivering an elongated light output for areas such as warehouse aisles or workbenches. The versatile 1×2 Power & CCT Tunable model features a convenient optional Plug and Play Motion Sensor, and is available with optional Bluetooth Networked Controls. One-to-one replacements for conventional HID, T5, or T8 linear fixtures for mounting heights ranging from 10’ to 24’, these lights are excellent for providing powerful, energy-efficient illumination for a wide range of indoor industrial and commercial facilities.
Applications
WAREHOUSES, WORKSHOPS, CONVENTION CENTERS, GYMNASIUMS, FACTORIES
Customer-Focused Features
|
OPTIMAL MATERIALS Advanced Thermal Management Aluminum Alloy Housing and Clear Poly Lens
|
DIMMABLE CONTROLS 1-10V Dimmable Control Allows for Customized Lighting Outputs
|
|
OPERATING TEMPERATURES Rated for Temperatures from -40˚F to 122˚F (-40˚C to 50˚C)
|
MEETS ANSI/IEEE C62.41.2 Integrated 6KV Surge Protection
|
