| SKU | WATTAGE | OUTPUT | CCT | CRI | VOLTAGE | POWER & CCT | REPLACES | UL | DLC | DLC ID |
| GKOWPG1526W27V50KD | 26W | 3,900 Lumens | 5000K / 4000K / 3000K | 70 | 120-277V | Fixed | 100W MH | Wet Locations | --- | --- |
| GKOWPG1538W27V50KD | 38W | 5,800 Lumens | 5000K / 4000K / 3000K | 70 | 120-277V | Fixed | 175W MH | Wet Locations | --- | --- |
| GKOWPG1538W27VDDKDPAD | 38W | 5,600 Lumens** | 5000K / 4000K / 3000K | 70 | 120-277V | Selectable | 175W MH | Wet Locations | Premium | S-WV3IBQ |
| GKOWPG1565W27V50KD | 65W | 9,800 Lumens | 5000K / 4000K / 3000K | 70 | 120-277V | Fixed | 250W MH | Wet Locations | --- | --- |
| GKOWPG1565W27VDDKDPAD | 65W | 9,500 Lumens** | 5000K / 4000K / 3000K | 70 | 120-277V | Selectable | 250W MH | Wet Locations | Premium | S-41KXU7 |
| GKOWPG15100W27V50KD | 100W | 15,000 Lumens | 5000K / 4000K / 3000K | 70 | 120-277V | Fixed | 320W MH | Wet Locations | --- | --- |
| GKOWPG15100W27VDDKDPAD | 100W | 14,800 Lumens** | 5000K / 4000K / 3000K | 70 | 120-277V | Selectable | 320W MH | Wet Locations | Premium | S-AUZIKN |
| GKOWPG15135W27V50KD | 135W | 20,000 Lumens | 5000K / 4000K / 3000K | 70 | 120-277V | Fixed | 400W MH | Wet Locations | --- | --- |
Visit the Design Lights Consortium website for more information on product DLC qualification.
**Indicated lumen value is for 3000K CCT.
High Efficacy Up To 153 LM/W
Series GKOWPG15 Slim Full Cutoff Wall Packs feature a stylish, low-profile full cutoff design that minimizes vertical light to reduce glare and light pollution. Power & CCT Adjustment Controls are available on 38W, 65W and 100W models, enabling the lighting professional to adjust light output to meet varied project requirements.

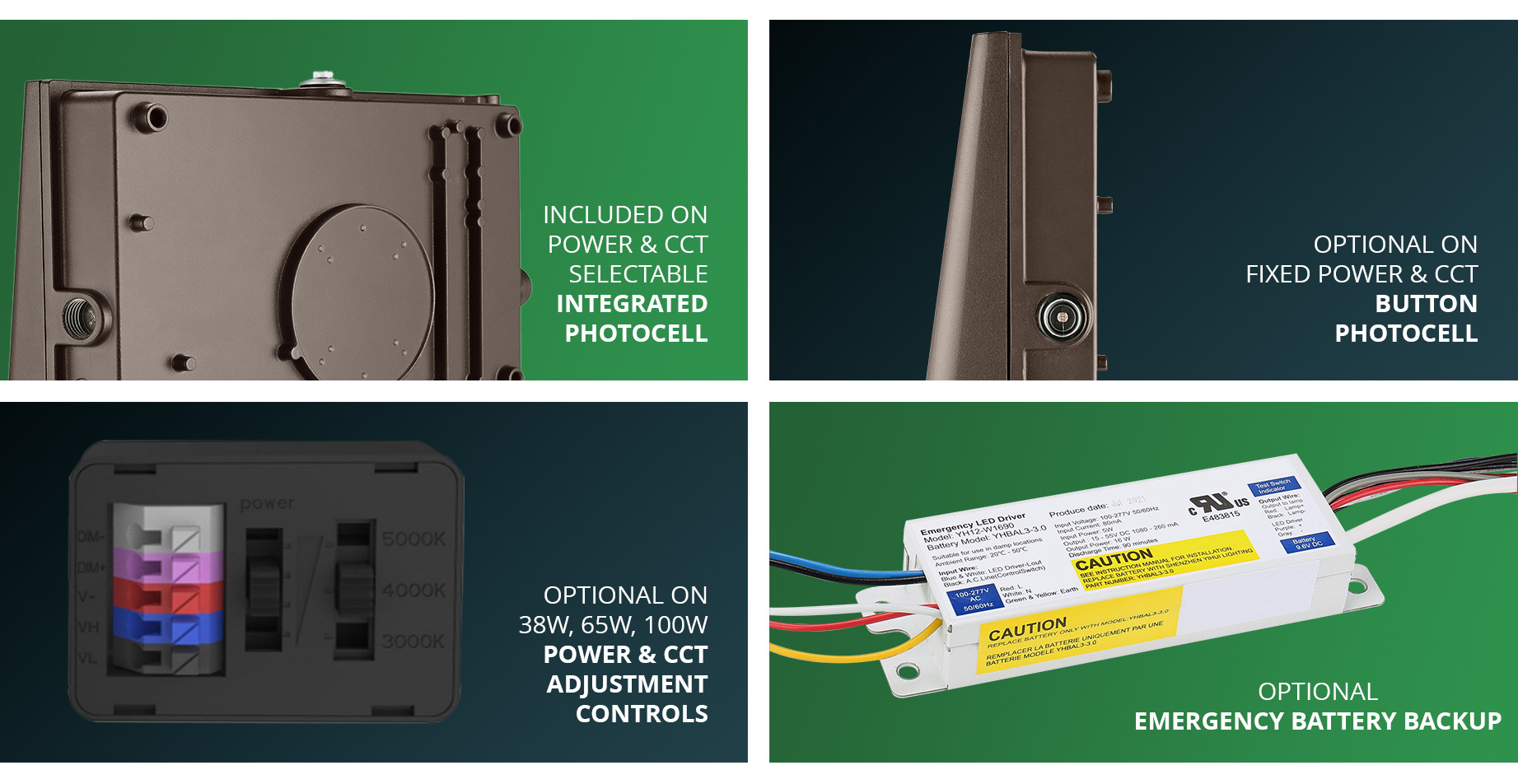

A photocell is included on Power & CCT Selectable models and optional on Fixed Power & CCT models, while an optional battery backup provides up to 90 minutes of emergency operation during power outages.
Applications
PATHWAYS, ENTRYWAYS, WALKWAYS, PERIMETER LIGHTING, SECURITY LIGHTING
Customer-Focused Features
|
OPTIMAL MATERIALS Die-Cast Aluminum Housing and Clear Polycarbonate Lens
|
DIMMABLE CONTROLS 0-10V Dimmable Control Allows for Customized Lighting Outputs
|
|
OPERATING TEMPERATURES Rated for Temperatures from -40˚F to 104˚F (-40˚C to 40˚C)
|
POWER & CCT SELECTABLE Power & CCT Adjustment Controls available for 38W, 65W and 100W
|
SELECTABLE: 26W/38W/65W
FIXED: 26W/38W/65W/100W/135W
SELECTABLE: 100W
