| SKU | WATTAGE | OUTPUT | CCT | CRI | VOLTAGE | REPLACES | UL | DLC | DLC ID |
| GKOALG5100W27V50KDSQT3 | 100W | 14,100 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | 250W MH | Wet Locations | Premium | S-EKFPVD |
| GKOALG5150W27V50KDSQT3 | 150W | 21,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | 400W MH | Wet Locations | Premium | S-M7LEKY |
| GKOALG5180W27V50KDSQT3 | 180W | 25,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | 400W MH | Wet Locations | Premium | S-LBI8HC |
| GKOALG5250W27V50KDSQT3 | 250W | 35,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | 750W MH | Wet Locations | Premium | S-6WY73C |
| GKOALG5300W27V50KDSQT3 | 300W | 42,000 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | 1,000W MH | Wet Locations | Premium | S-3JGWUC |
Visit the Design Lights Consortium website for more information on product DLC qualification.
featuring a wide range of mounting and accessory options

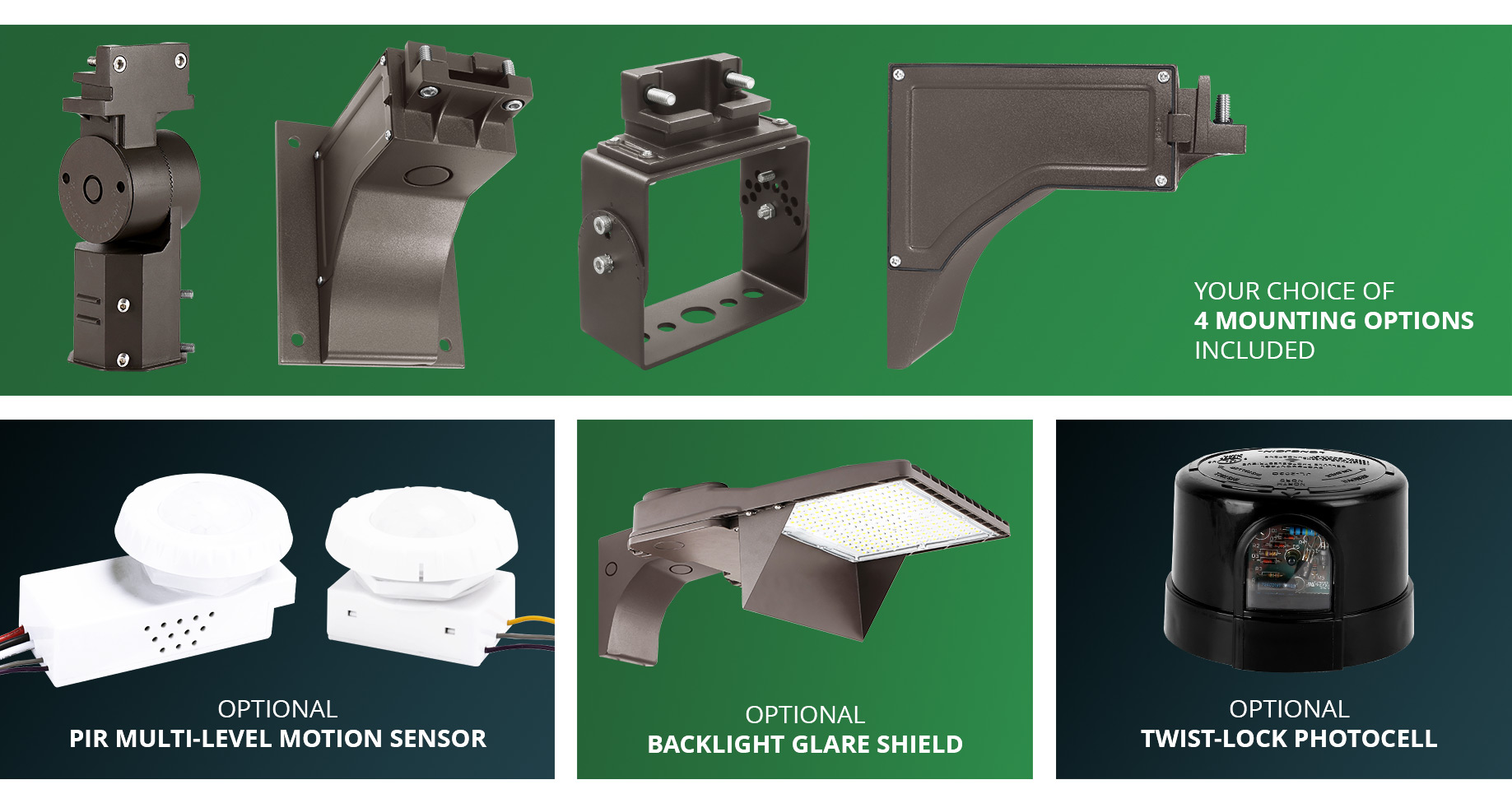

Series GKOALG5 Area Lights feature a lightweight and compact design for easier installation and reduced shipping costs. They are available in 3 light distributions and 2 color temperatures, and include a choice of one of 4 mounting options.
A wide range of compatible brackets and tenons are available to accommodate complex installation requirements. An optional multi-level motion sensor can provide additional energy savings. Please note that a photocell and motion sensor cannot be installed on the same fixture.
Applications
STREETS, BUILDING FACADES, PARKING LOTS, SECURITY AREAS
Customer-Focused Features
|
OPTIMAL MATERIALS Die-Cast Aluminum Housing and Clear Polycarbonate Lens
|
3 LIGHT DISTRIBUTIONS Type III, Type IV, or Type V Light Distribution with a CRI of 70
|
|
OPERATING TEMPERATURES Rated for Temperatures from -40˚F to 104˚F (-40˚C to 40˚C)
|
MEETS ANSI/IEEE C62.41.2 Integrated 6kV Surge Protection with Additional 10 kV (120-277V) or 20 kV (347-480V)
|
