| SKU | WATTAGE | OUTPUT | CCT | CRI | VOLTAGE | REPLACES | UL | DLC | DLC ID |
| GKOALG8100W27VDDKDSQT3AD | 100W | 14,500 Lumens* | 5000K / 4000K / 3000K | 70 | 120-277V / 347-480V | 250W MH | Wet Locations | Premium | S-KPEIV6 |
| GKOALG8140W27VDDKDSQT3AD | 140W | 20,000 Lumens* | 5000K / 4000K / 3000K | 70 | 120-277V / 347-480V | 400W MH | Wet Locations | Premium | S-OTFQ59 |
| GKOALG8180W27VDDKDSQT3AD | 180W | 24,000 Lumens* | 5000K / 4000K / 3000K | 70 | 120-277V / 347-480V | 400W MH | Wet Locations | Premium | S-C2YLXK |
| GKOALG8250W27VDDKDSQT3AD | 250W | 33,500 Lumens* | 5000K / 4000K / 3000K | 70 | 120-277V / 347-480V | 750W MH | Wet Locations | Premium | S-3M1B6Q |
| GKOALG8300W27VDDKDSQT3AD | 300W | 41,000 Lumens* | 5000K / 4000K / 3000K | 70 | 120-277V / 347-480V | 1,000W MH | Wet Locations | Premium | S-DBN4M5 |
| GKOALG8400W27VDDKDSQT3AD** | 400W | 61,500 Lumens | 5000K / 4000K | 70 | 120-277V / 347-480V | 1,000W MH | Wet Locations | Premium | COMING SOON |
*Indicated lumen value is for 3000K CCT.
**3000K CCT is not available for 400W model.
Visit the Design Lights Consortium website for more information on product DLC qualification.
Maximum versatility with high lumen output of up to 61,500 lm
Series GKOALG8 Area Lights are a versatile area lighting solution with easily accessible Power & CCT adjustment controls standard on every model. Every light can be set to one of 4 power levels and to 3000K, 4000K, or 5000K CCT, with the exception of 400W, which can be set to 4000K or 5000K.

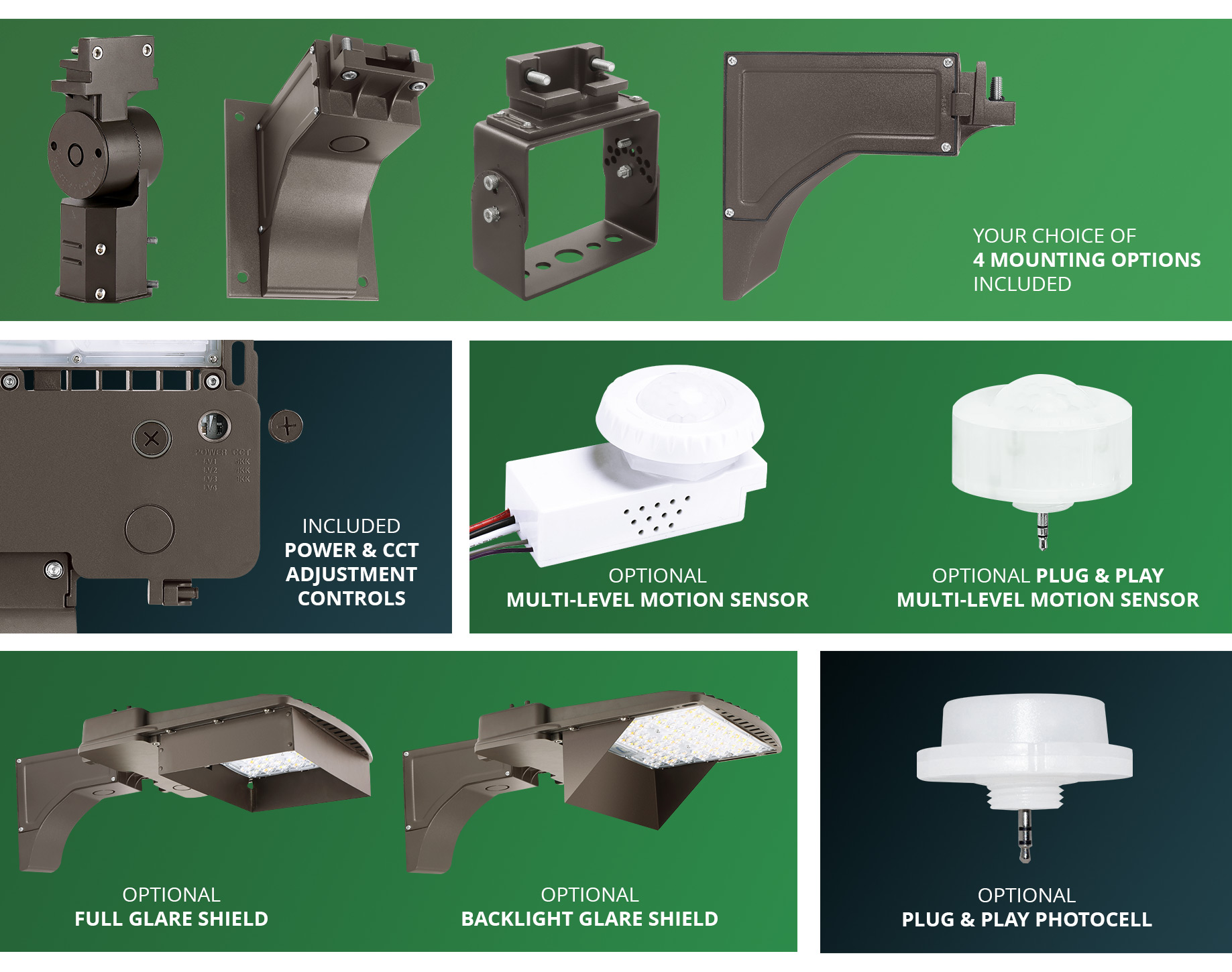

A wide range of compatible brackets and tenons are available to accommodate complex installation requirements. An optional twist-lock photocell or motion sensor can provide additional energy savings.
Applications
STREETS, BUILDING FACADES, PARKING LOTS, SECURITY AREAS
Customer-Focused Features
|
OPTIMAL MATERIALS Die-Cast Aluminum Housing and Clear Polycarbonate Lens
|
3 LIGHT DISTRIBUTIONS Type III, Type IV, or Type V Light Distribution with a CRI of 70
|
|
OPERATING TEMPERATURES Rated for Temperatures from -40˚F to 113˚F (-40˚C to 45˚C)
|
POWER & CCT TUNABLE Power & CCT Adjustment Controls pre-installed on all models
|
