Bluetooth Networked Controls Available
SERIES GKOTRG1

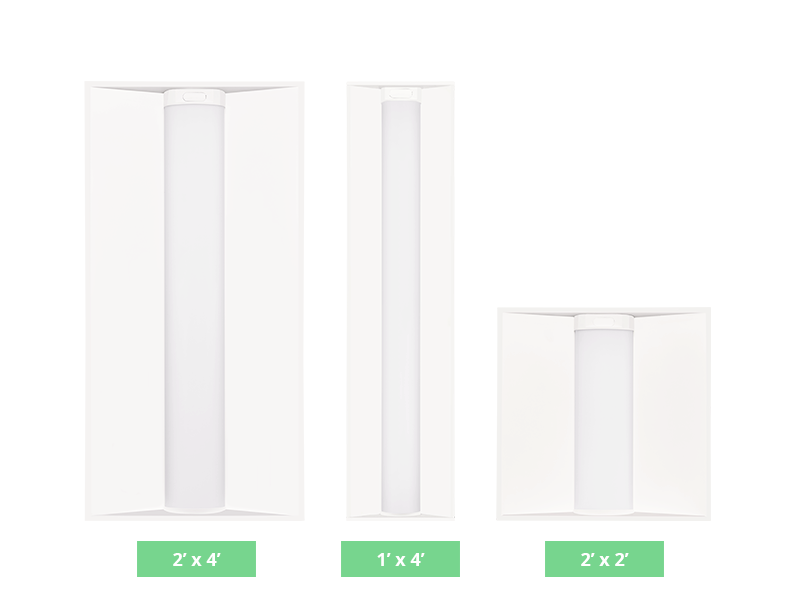

LED Troffer

Energy-efficient LED Troffers with with optional Power & CCT Adjustment Controls and Plug & Play Bluetooth Networked Controls.

TUNABLE WATTAGE OPTIONS

SKU SIZE WATTAGE OUTPUT CCT CRI VOLTAGE UL DLC DLC ID
GKOTRG114D30W27VDDK 1x4 30W 3,900 Lumens 3500K, 4000K, & 5000K 82 120-277V Damp Locations Standard S-X5F8FD
GKOTRG122D30W27VDDK 2x2 30W 3,900 Lumens 3500K, 4000K, & 5000K 83 120-277V Damp Locations Standard S-7D5MHZ
GKOTRG122D40W27VDDK 2x2 40W 5,200 Lumens 3500K, 4000K, & 5000K 82 120-277V Damp Locations Standard S-HMH372
GKOTRG124D35W27VDDK 2x4 35W 4,550 Lumens 3500K, 4000K, & 5000K 82 120-277V Damp Locations Standard S-3C8VC2
GKOTRG124D45W27VDDK 2x4 45W 5,850 Lumens 3500K, 4000K, & 5000K 83 120-277V Damp Locations Standard S-5QVT81

SINGLE WATTAGE OPTIONS

SKU SIZE WATTAGE OUTPUT CCT CRI VOLTAGE UL DLC DLC ID
GKOTRG114D20W27VDDK 1x4 20W 2,600 Lumens 3500K, 4000K, & 5000K 84 120-277V Damp Locations Standard S-F72H07
GKOTRG114D25W27VDDK 1x4 25W 3,250 Lumens 3500K, 4000K, & 5000K 84 120-277V Damp Locations Standard S-QL2QFJ
GKOTRG122D20W27VDDK 2x2 20W 2,800 Lumens 3500K, 4000K, & 5000K 83 120-277V Damp Locations Standard S-8XS6CN
GKOTRG122D25W27VDDK 2x2 25W 3,375 Lumens 3500K, 4000K, & 5000K 83 120-277V Damp Locations Standard S-6XD06Z
GKOTRG122D35W27VDDK 2x2 35W 4,620 Lumens 3500K, 4000K, & 5000K 82 120-277V Damp Locations Standard S-KVG6YB
GKOTRG122D40W27VDDK 2x2 40W 5,200 Lumens 3500K, 4000K, & 5000K 82 120-277V Damp Locations Standard S-HMH372
GKOTRG124D25W27VDDK 2x4 25W 3,450 Lumens 3500K, 4000K, & 5000K 82 120-277V Damp Locations Standard S-YTBZM5
GKOTRG124D30W27VDDK 2x4 30W 4,020 Lumens 3500K, 4000K, & 5000K 82 120-277V Damp Locations Standard S-J60PQT
GKOTRG124D34W27VDDK 2x4 34W 4,760 Lumens 3500K, 4000K, & 5000K 83 120-277V Damp Locations Standard S-0RTZVY
GKOTRG124D38W27VDDK 2x4 38W 5,130 Lumens 3500K, 4000K, & 5000K 83 120-277V Damp Locations Standard S-NB2G7K

Visit the Design Lights Consortium website for more information on product DLC qualification.

Built For Tough Environments

Series GKOTRG1 LED Troffers are an energy-efficient replacement for traditional fluorescent fixtures in commercial and institutional settings with recessed or suspended grid ceilings, such as offices or classrooms. Power & CCT Adjustment Controls are available, allowing the lighting professional to adjust the lumen output and CCT of the fixture during installation.

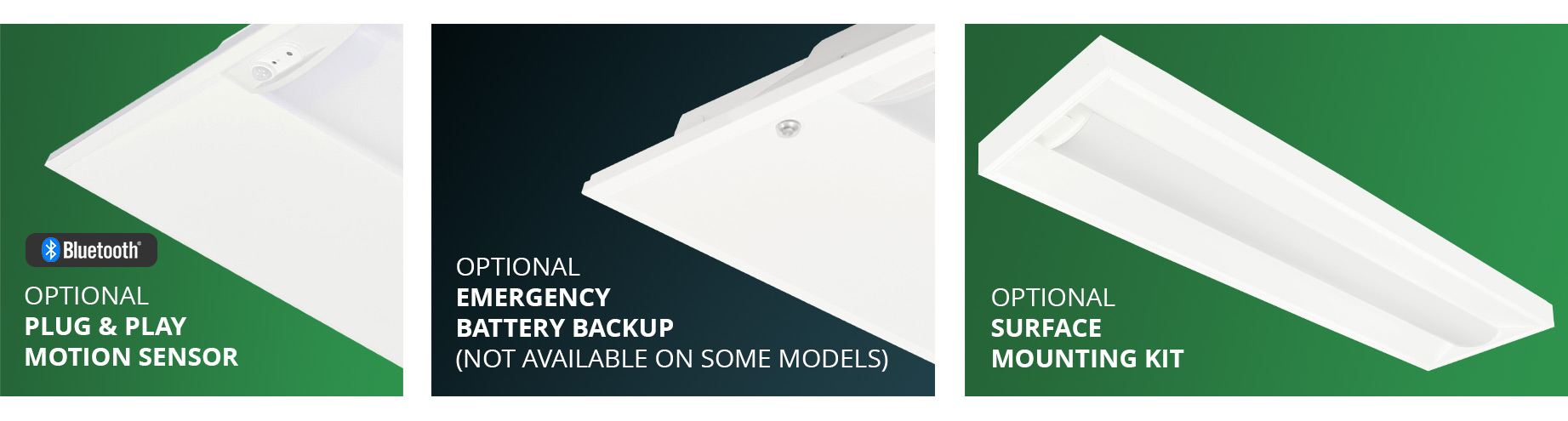

Available options include multi-level motion sensors and emergency battery backup models that allow emergency operation during power outages.



Applications

OFFICE, RETAIL, AND INSTITUTIONAL SETTINGS WITH SUSPENDED GRID OR RECESSED CEILINGS

Customer-Focused Features

OPTIMAL MATERIALS

Stamped Sheet Metal Housing and Frosted Polycarbonate Lens

DIMMING CONTROLS

0-10V Dimmable Control Allows for Customized Lighting Outputs

OPERATING TEMPERATURES

Rated for Temperatures from -4˚F to 122˚F (-20˚C to 50˚C)

MEETS ANSI/IEEE C62.41.2

1kV Surge Protection Standard
GKOTRG1 Bluetooth Networked Controls
