SERIES GKOMSG1

Magnetic Strip Kit

A cost and labor-effective LED retrofit option for 1×4 and 2×4 fluorescent fixtures using T8, T12, or T5 lights.

SELECTABLE WATTAGE OPTIONS

SKU WATTAGE POWER SELECTABLE OUTPUT CCT SELECTABLE CRI VOLTAGE REPLACES ETL DLC DLC ID
GKOMSG14F35W27VDDKWAD2 35W Selectable 5,250 Lumens 50K, 40K, 35K, 30K, & 27K 80 120-277V (3) T8
(2) T5
120W HID		 Damp Locations Coming Soon Coming Soon

SINGLE WATTAGE OPTIONS

SKU WATTAGE POWER SELECTABLE OUTPUT CCT SELECTABLE CRI VOLTAGE REPLACES ETL DLC DLC ID
GKOMSG14F26W27VDDKWAD2 26W Single Wattage 3,980 Lumens 50K, 40K, 35K, 30K, & 27K 80 120-277V (2) T8
(1) T5
50W HID		 Damp Locations Coming Soon Coming Soon
GKOMSG14F21W27VDDKWAD2 21W Single Wattage 3,250 Lumens 50K, 40K, 35K, 30K, & 27K 80 120-277V (2) T8
(1) T5
70W HID		 Damp Locations Coming Soon Coming Soon

Visit the Design Lights Consortium website for more information on product DLC qualification.

COST-EFFECTIVE & ENERGY-EFFICIENT

Series GKOMSG1 Magnetic Strip Kits are designed to replace fluorescent T8, T12, or T5 lights in 1×4 or 2×4 fixtures, offering a simple retrofit solution when upgrading the entire fixture to LED is not an option. Integrated magnets allow easy and accurate positioning and alignment during installation.

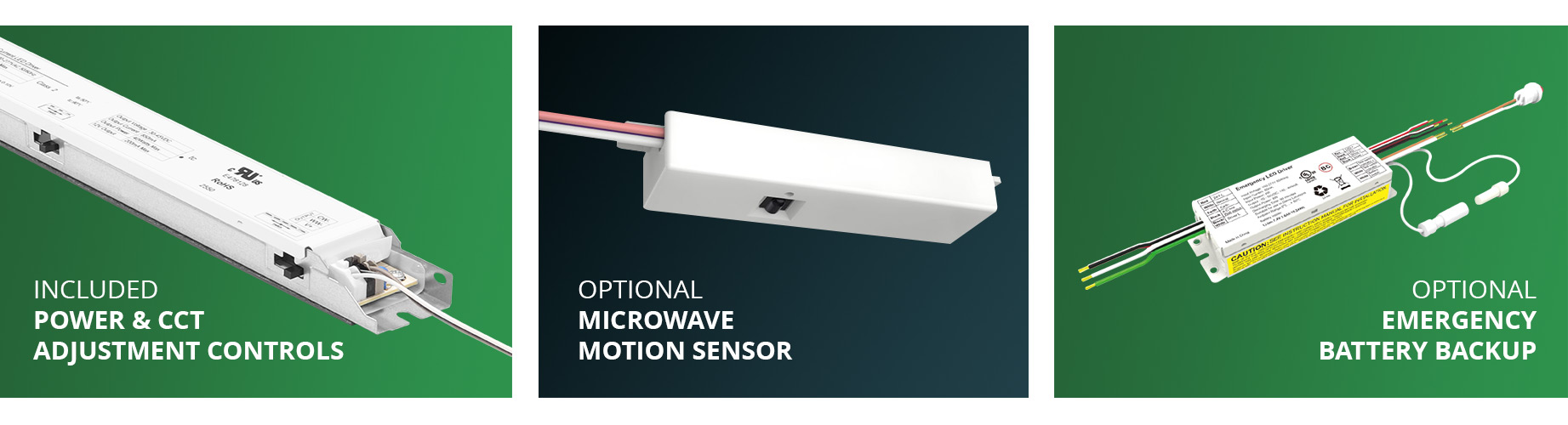

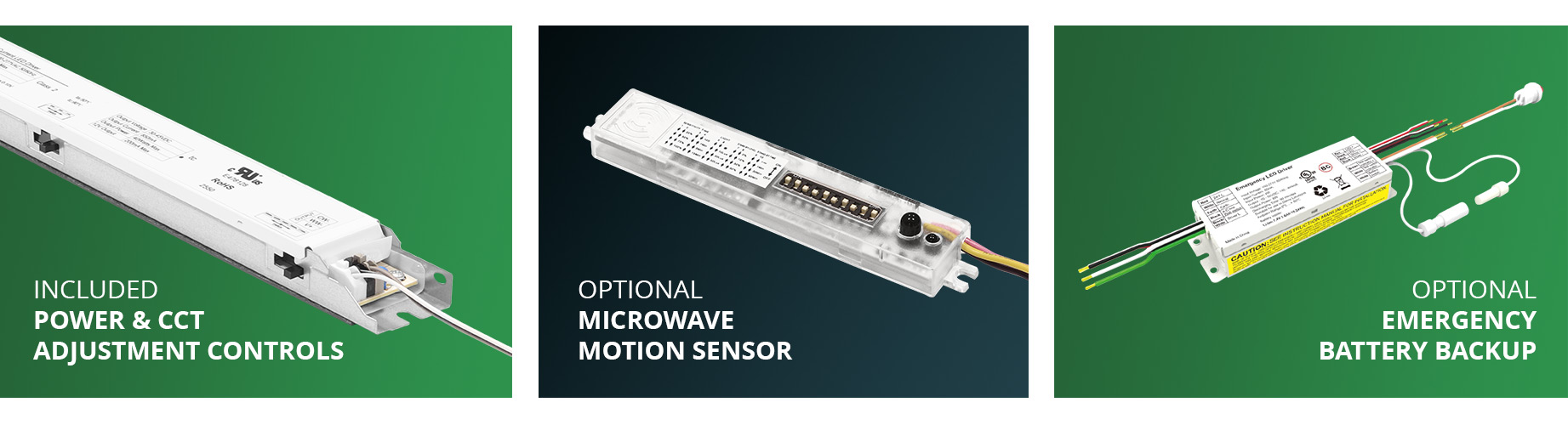

Available options include a multi-level microwave motion sensor for additional energy savings and an emergency battery backup that allows emergency operation during power outages.



Applications

1×4 AND 2×4 RECESSED TROFFERS AND WRAPAROUNDS

Customer-Focused Features

OPTIMAL MATERIALS

Compact & Lightweight Polycarbonate Housing and Lens

DIMMABLE CONTROLS

0-10V Dimmable Control Allows for Customized Lighting Outputs

OPERATING TEMPERATURES

Rated for Temperatures from -4˚F to 104˚F (-20˚C to 40˚C)

EASY INSTALL

Magnetic design for fast, straightforward installation

Request A Quote

Want to place an order, or have questions about our products? Please fill out the form below and our sales team will be happy to assist you. Alternatively, you may contact us by calling us at 630-793-9449 or emailing us at info@gkoled.com.
